Integrated Innovation: How Encoder-Bearing Assemblies Exemplify the Future of Mechatronic Integration

Industry Background & Market Trends

In industrial automation, robotics, and precision motion control, encoders and bearings are both indispensable. Traditionally, the encoder provides position and speed feedback, while the bearing supports rotating components. As equipment evolves toward higher performance, miniaturization, and increased integration, combining sensing and mechanical components into a single unit has become a defining trend. This integration not only enhances overall performance but also offers greater design flexibility.

Core Challenges & Pain Points

• Cumulative tolerances from multiple components reduce system concentricity

• Large component size limits compact system layouts

• Complex assembly increases production costs and maintenance difficulty

• Interfaces between components can loosen or wear over time

Case Study: Integrated Encoder-Bearing Design

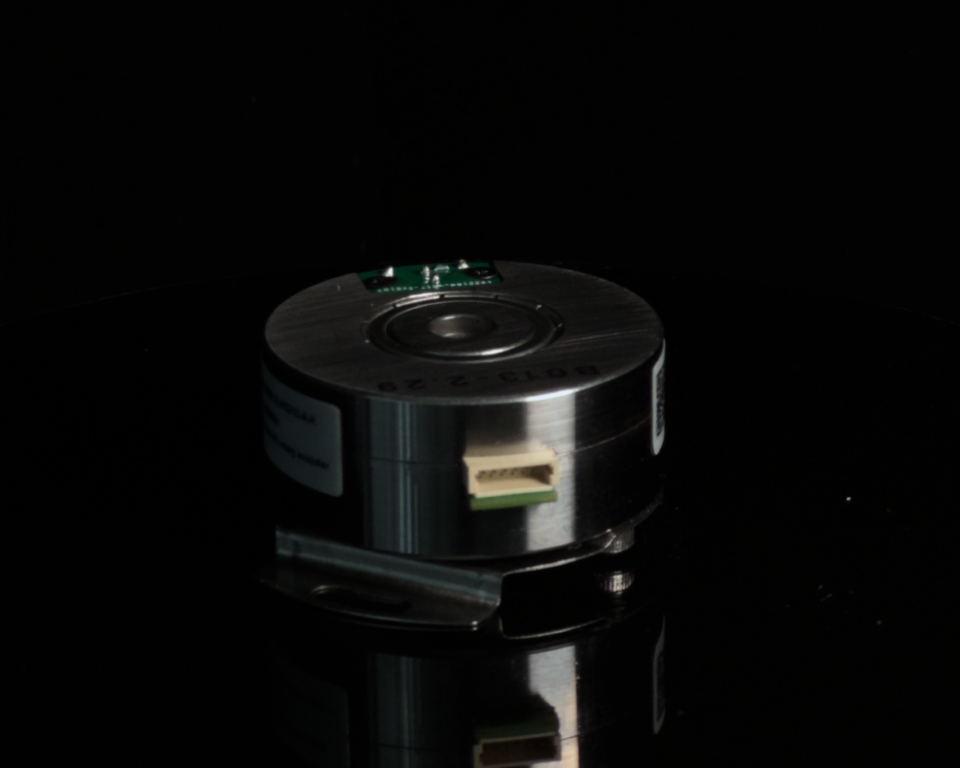

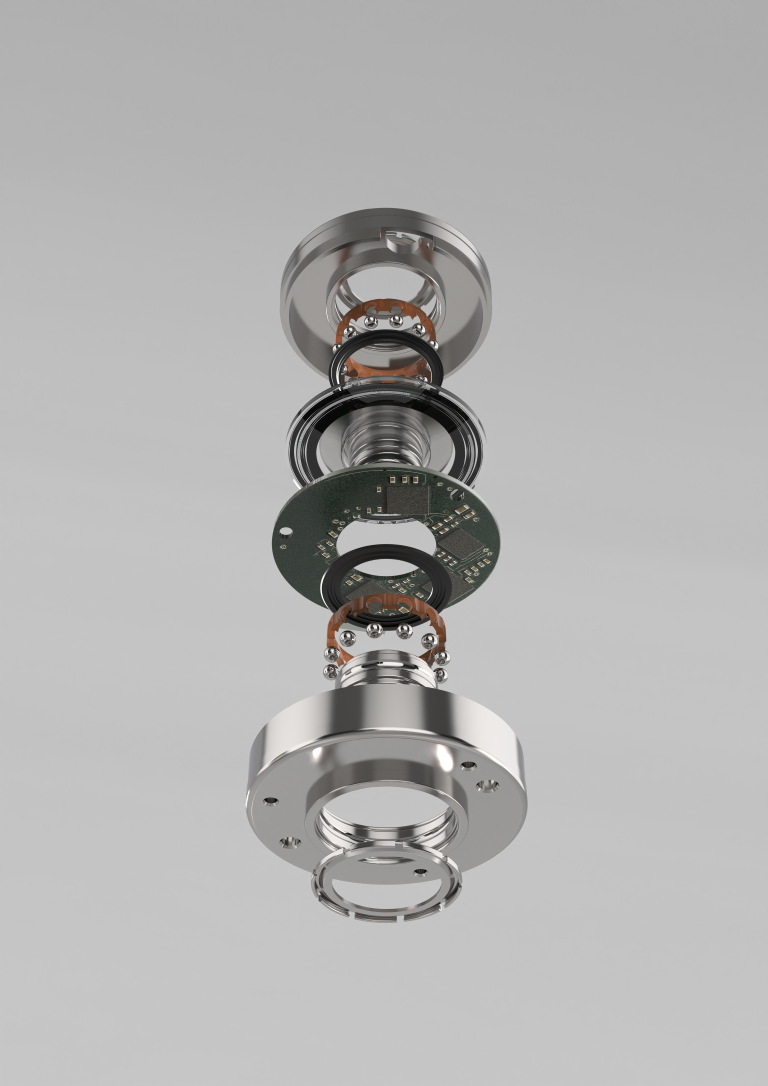

Through in-house R&D and manufacturing capabilities, we have combined a photoelectric encoder and a high-precision bearing into a fully integrated unit:

• Significantly improved concentricity, reducing errors from assembly tolerances

• Approx. 63% reduction in overall volume, ideal for compact equipment designs

• Fewer assembly steps, improving manufacturing efficiency

Technical Highlights & Innovations

• High-precision machining and assembly processes ensure optimal sensor-mechanical alignment

• Coaxial design of optical measurement and mechanical support reduces signal noise and mechanical stress

• Optimized for high-load and high-speed applications

Application Scenarios

• Collaborative robot joints

• Positioning and feedback systems in automated production lines

• High-precision rotary tables and inspection equipment

Industry Validation

This type of integrated solution has been deployed by leading industrial equipment manufacturers, earning recognition for its stability and precision performance.

Get in Touch

If you are seeking a sensing-mechanical integrated solution that delivers performance, compactness, and reliability, contact us for customized technical support.
