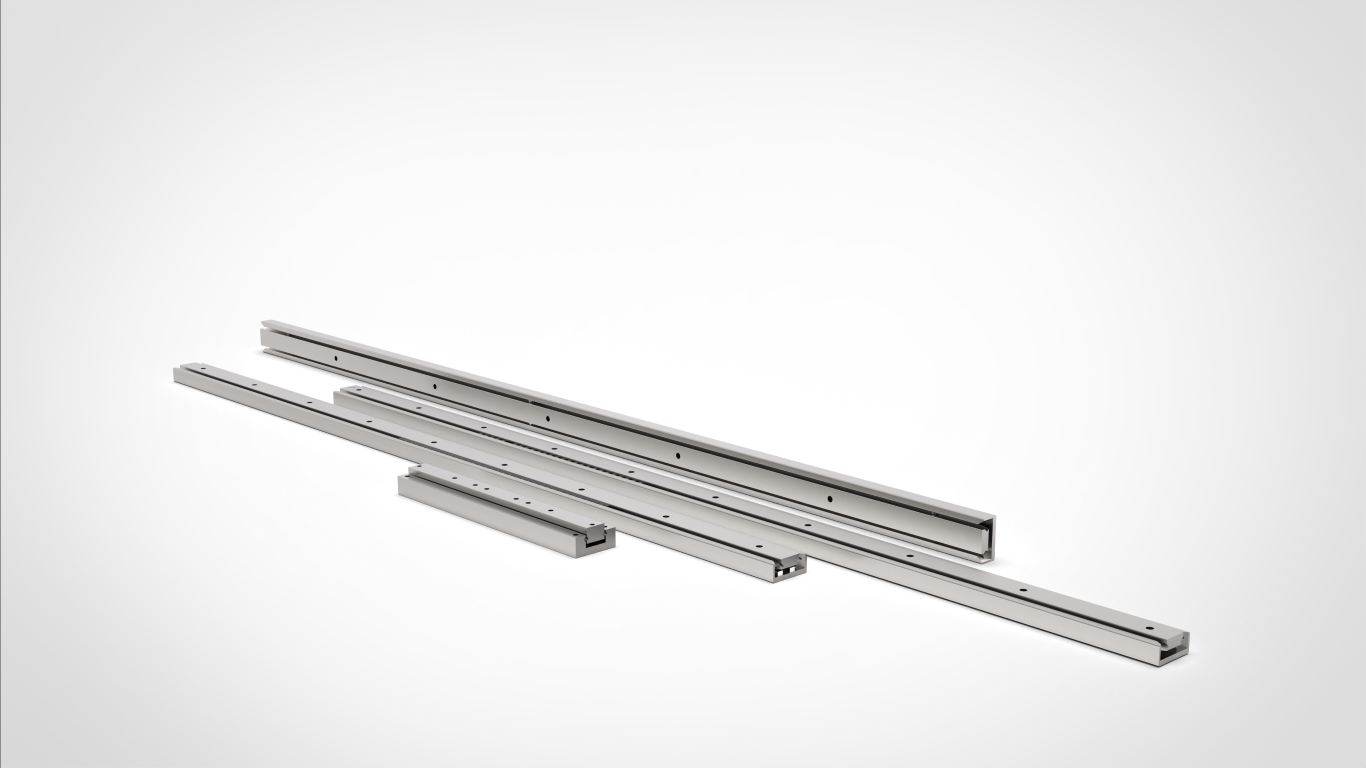

Precision Slide Rails for Automated Warehouse & AMR Fork Applications

Precision Slide Rails for Automated Warehouse & AMR Fork Applications

High‑Performance, Cost‑Efficient Rails for Vertical Lifts and Telescoping Forks

1. Industry Challenge

Modern warehouses and AMR fleets demand linear motion components that deliver:

• High-accurancy repeatability for both vertical lifts and telescoping forks

• Ultra‑smooth travel under high cycle counts

• Compact profiles to fit within tight mast and fork housings

• Durability in dusty, high‑load environments

• Cost efficiency, despite specialty‑grade performance requirements

Traditional lift and fork rail designs often require specialized steels, significantly increasing material costs and introducing unnecessary complexity to the supply chain.

2. BOM’s Technical Breakthrough

Drawing on decades of bearing‑grade micro‑tolerance expertise, BOM has reengineered slide‑rail production to deliver premium performance on standard steel:

• Bearing‑Level Grinding Precision
  Adapting our multi‑pass grinding sequences, we achieve better flatness and straightness than conventional high‑cost rails—engineered with industry-grade high-strength alloy steel, offering exceptional performance without the premium cost of specialized materials.

• Innovative Roller‑Rail Interface
  Proprietary rolling element designs reduce friction and wear, ensuring smooth, jerk‑free motion in both vertical lift and fork‑extension axes.

• 50% System‑Level Cost Reduction
  Combined material and process savings cut total rail system costs in half—without sacrificing accuracy or durability.

3. Key Benefits

• Up to 50% Cost Savings
  Compared to traditional specialty-steel solutions, our slide rails cut total system costs in half.

• Superior Precision
  Delivers sub-millimeter repeatability in both vertical lifts and telescoping fork applications.

• Smooth, Jerk-Free Operation
  Engineered rolling interfaces ensure quiet, stable, and consistent motion.

• Compact & Modular Design
  Slim profiles and customizable lengths fit seamlessly into tight mast and fork spaces.

• Long Service Life
  Robust materials and fine surface finishing reduce wear, ensuring long-term reliability.

4. Typical Applications

• AMR Vertical Lifts
  Precision guide rails for CTU‑style lift masts, ensuring stable, repeatable elevation of goods.

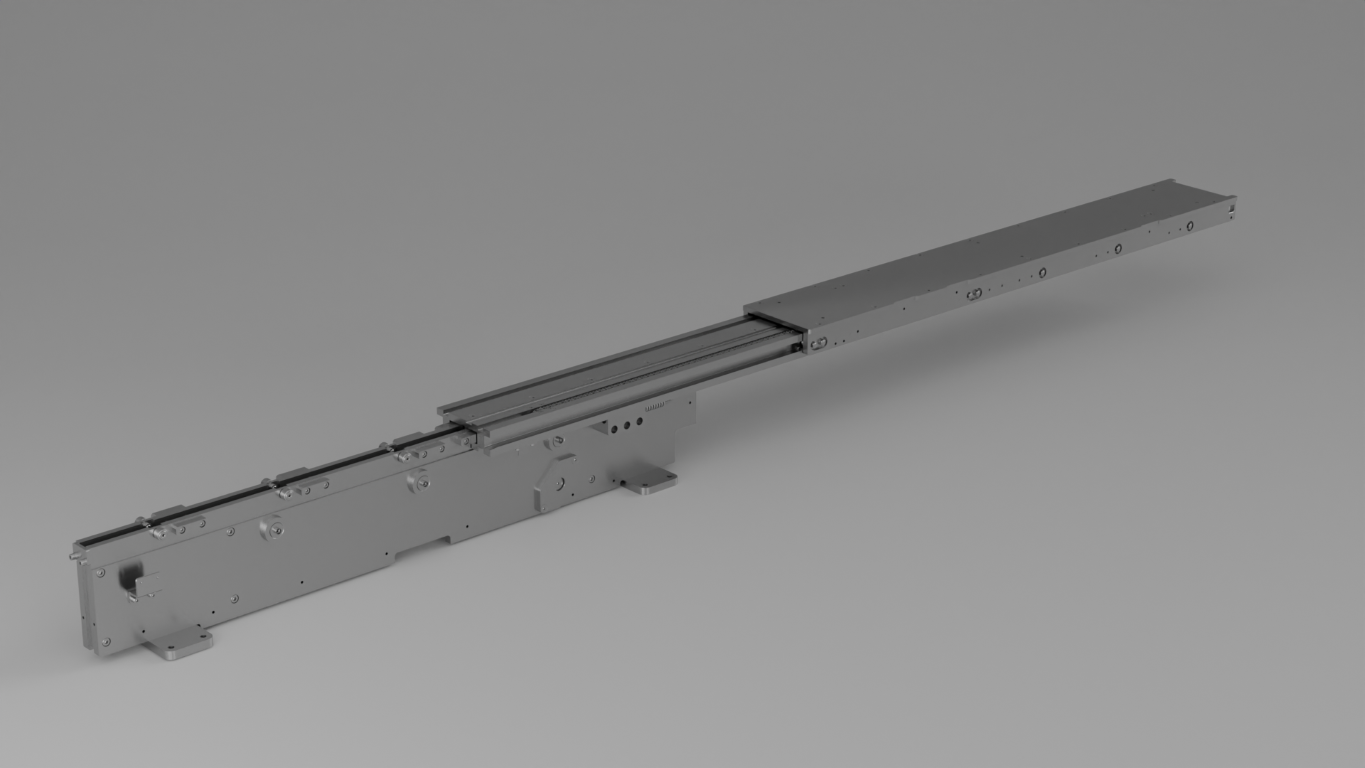

• Telescoping Forks
  Front‑to‑rear extension rails for automated forklift arms, enabling accurate load handling.

• Multi‑Shuttle Storage
  Lateral rails in dense racking systems for high‑speed aisle shuttle carts.

• Robotic Picking Gantries
  Linear axes in pick‑and‑place robots for exact positioning.

5. Customization & Integration

• Integrated Module Assemblies
  Rail segments pre‑installed with end‑blocks, carriages, and mounting brackets for guaranteed concentricity and preload consistency.

• Tailored Profiles & Accessories
  Side flanges, cable channels, scraper options, and corrosion‑resistant coatings for specialized environments.

• One‑Stop Solution
  From 3D CAD reviews to prototype samples, BOM supports rapid validation and deployment.

6. Industry Validation

Multiple leading automated‑warehousing integrators deploy BOM slide rails on both their vertical lift masts and fork‑extension mechanisms. They report:

• 50% reduction in rail component budgets

• Improved throughput with faster lift and fork cycles

• Minimal stoppages thanks to reliable, low‑friction performance

“BOM rails have become our go‑to solution for CTU lifts & forks—no more exotic steels, yet precision and reliability exceed expectations.”
— Senior Engineer, Top 3 Chinese AMR Manufacturer

7. Next Steps

Ready to halve your rail costs and elevate both lift and fork performance for your AMR fleet?
Contact BOM today for a tailored proposal, sample rails, and performance estimates: contact@bom‑cn.com

Unlock smoother, more accurate motion at half the cost—only with BOM Precision Slide Rails.
