Why More Humanoid Robots Are Choosing Thin-Section Crossed Roller Bearings for Their Joints

As humanoid robots get smarter, faster, and more agile, there’s a lot happening behind the scenes to make their movements look natural and precise. One key component that often gets overlooked? The bearings in their joints. And not just any bearings—more engineers are turning to thin-section crossed roller bearings to meet the unique demands of humanoid robotics.

In this article, we’ll break down why these bearings are gaining popularity, what makes them ideal for robot joints, and how they stack up in real-world applications.

The Pressure Is On: Why Robot Joint Bearings Matter

Unlike industrial robots that perform repetitive tasks in fixed positions, humanoid robots must handle dynamic, multi-directional loads. Their joints need to be:

• Lightweight, to reduce power consumption

• High-rigidity, to maintain precision under complex loads

• Compact, to fit into small joint spaces

• Smooth and reliable, for natural motion and long service life

Traditional deep-groove ball bearings or even standard angular contact bearings often fall short in one or more of these areas.

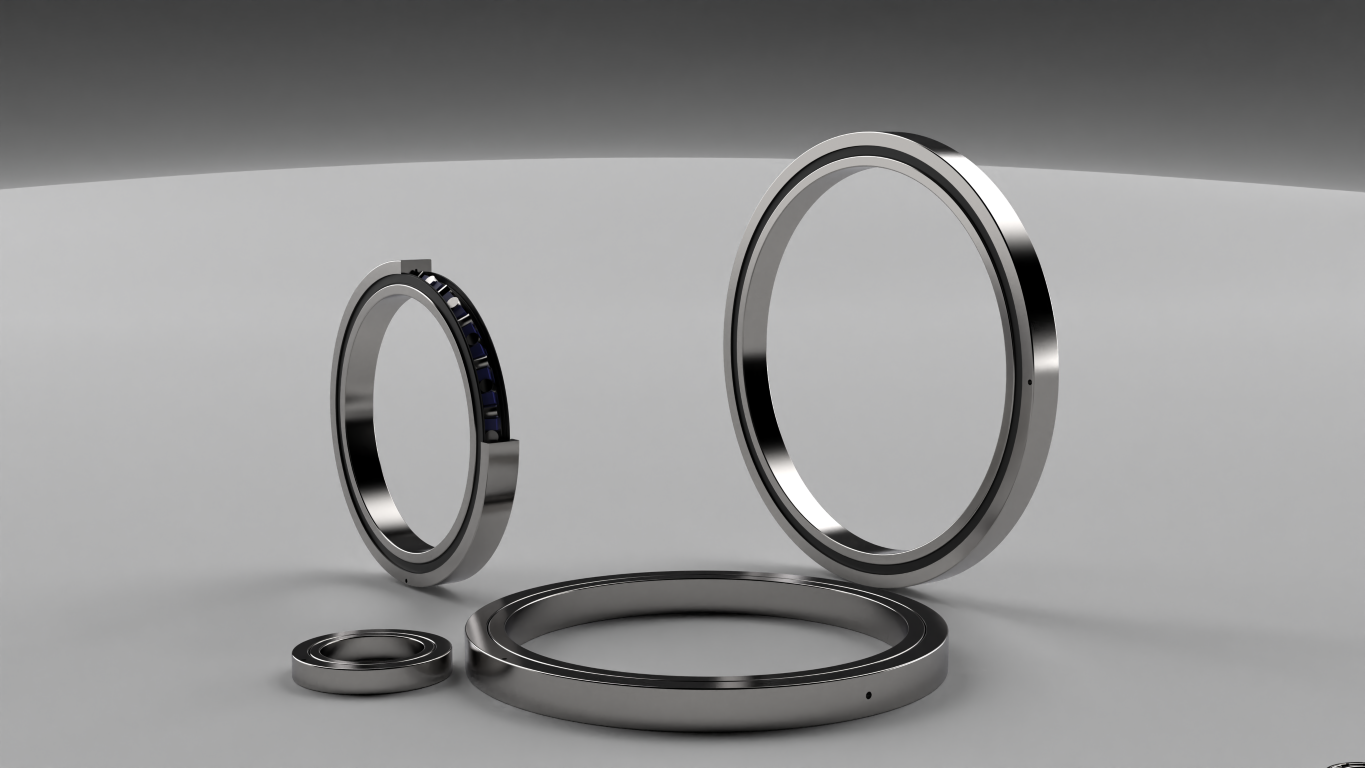

What Are Thin-Section Crossed Roller Bearings?

These bearings are designed to handle radial, axial, and moment loads simultaneously, all within a very narrow profile. The key lies in their structure:

• Rollers are oriented alternately at 90° angles, forming a cross pattern

• This configuration creates a compact design that distributes load evenly

• Available in ultra-thin cross-sections with large bore-to-width ratios

They’re a favorite in aerospace gimbals, medical arms, and now—robot joints.

Five Key Reasons They Work So Well in Humanoid Robots

1. High Rigidity for Precision Control
With every micrometer of movement amplified through a robot arm or leg, rigidity is non-negotiable. Crossed roller bearings maintain accuracy even under torque and vibration.

2. Load-Bearing in All Directions
Unlike ball bearings, which often need to be paired in sets, one crossed roller bearing can handle loads from multiple axes at once—perfect for shoulder, elbow, and hip joints.

3. Ultra-Compact for Small Joint Spaces
Space is tight in humanoid designs. These bearings offer high performance in slim packages, helping engineers save space and simplify assemblies.

4. Lightweight for Energy Efficiency
Their compact form factor reduces overall weight, which is critical for battery-powered robots aiming for longer runtime.

5. Long-Term Reliability
Fewer components, less wear, and smoother operation mean these bearings can operate reliably over millions of cycles.

Real-World Example: Swapping Out Dual Bearings for a Single Crossed Roller

In one robotics lab prototype, engineers originally used two angular contact bearings in the robot's elbow joint. After switching to a single thin-section crossed roller bearing:

• Joint thickness reduced by 60%

• Weight dropped by nearly 50%

• Assembly was simplified

• Backlash reduced to nearly zero

• Rigidity increased by 35–50%

• Impact resistance improved by up to 20%

That kind of result isn’t unusual. The design advantages translate directly into performance and manufacturing efficiency.

Conclusion: Small Bearing, Big Impact

As more companies invest in embodied AI and lifelike robotics, every mechanical component matters. Thin-section crossed roller bearings might be small, but they’re making a big difference in how robots move, perform, and last.

If you’re designing a humanoid robot and want advice on selecting or customizing bearings for your joints, feel free to reach out to our team. We’re here to help engineers build robots that move like humans—smooth, strong, and smart.
