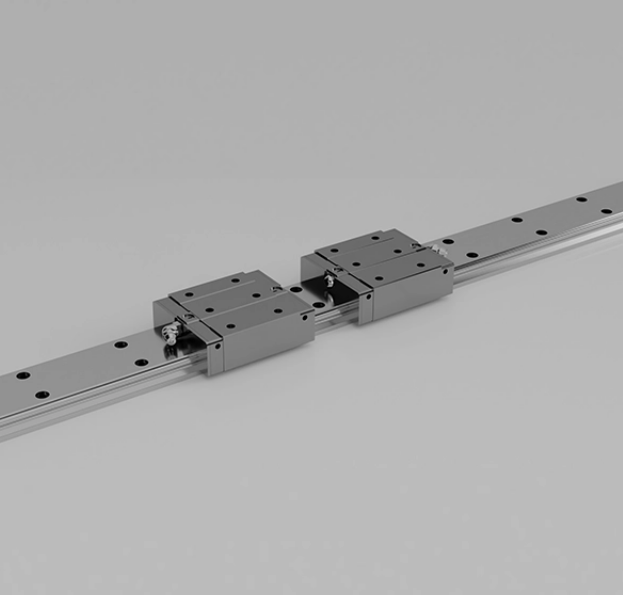

| A guide rail is a carefully made part. It helps move things in a straight line. It keeps things steady and reduces rubbing. Guide rails are very important in many industries. They help things move safely and stay in place. In factories, guide rails work with a carriage. Together, they make things move smoothly. The need for guide rails is growing around the world. This is because many industries want machines that work very well. As more factories use machines, guide rails help them work better. They also help make products higher quality. Guide rails help things move in a straight line and lower friction in machines. - There are different guide rails for different jobs, like dovetail and boxway rails. - Guide rails hold heavy things and help machines be more accurate and safe. - Factories, robots, and medical tools use guide rails to move smoothly. - Cleaning and oiling guide rails often helps them work better. Guide Rail BasicsWhat is a Guide RailA guide rail is a tough, straight piece. It helps things move in one direction. People sometimes call them sliding rails or linear guides. These rails do not stretch or shrink. They help things move smoothly and safely on a path. Factories and machines use guide rails to keep parts steady. They also help lower friction. Most guide rails are made from steel, aluminum, or stainless steel. These metals help the rails last long and fight rust. Guide rails are important in many machines. They help hold weight and keep movement exact. Sliding rails are simple to clean and take care of. Cleaning and adding oil often helps them work well for years. The weight a guide rail can hold depends on its size and how many runners it has. Some sliding rails can hold 5 kg. Others can hold up to 600 kg for each runner. BOM makes guide rails for many uses. The company uses smart ideas and designs to help machines work better. BOM’s guide rails help robots, machines, and other tools move with power and accuracy.
Main Types of Guide RailsGuide rails come in many shapes and sizes. Each kind has special features for different jobs. Factories and machines use these rails to help parts move the right way. Here are some common sliding rails and their main features: Type of RailDistinguishing FeaturesDovetail RailsDovetail shape gives steady movement and good alignment. These rails do not shake and work well in hard jobs.Boxway RailsBox shape gives more contact. These rails hold heavy loads and stay strong under pressure.Sleeve Bearing SlidesSimple design with round surfaces. These rails work best for light or medium loads and need little care.Linear Ball BushingsUse ball bearings for smooth movement and better load support. These rails help machines move with less effort.Crossed Roller RailsUse rollers in a special pattern for high load and high precision. These rails are great for jobs that need exact movement.Factories use linear guides for machines that need very exact movement. These guides have a rail that stays still and a carriage that moves. The rail gives a path for the load. The carriage slides along the rail. Linear guides can handle force from many directions, like up, down, or sideways. They work well in machine tools because they have low friction and high accuracy. Sliding rails and guide rails are not the same as linear rods. The table below shows some main differences: FeatureLinear RailsLinear RodsDesignBuilt together, many contact pointsSimple, round shaftsPrecisionVery exact (±0.001mm)Pretty exact (±0.01mm)Load CapacityCan hold heavy loadsDepends on size and bearing typeApplicationGood for high-performance systemsUsed in simple moving systemsMaintenanceHas seals and oil portsNeeds more care and outside supportsBOM uses these guide rails in many products. The company makes special rails for robots, embroidery machines, and warehouse systems. Each rail is made for its job. This gives machines the support and movement they need. How Linear Guides WorkKey ComponentsLinear guides use several important parts to help machines move with accuracy. Each part has a special job. The main components include:
Material choice matters for these parts. Steel gives high strength and hardness. It works well for heavy loads. Aluminum helps with heat but is softer. Picking the right material depends on how hot or heavy the job is. Operational PrinciplesLinear guides follow basic science rules to keep machines moving straight and true. The table below shows some key principles: PrincipleDescriptionNewton’s First LawObjects stay still or move straight unless a force changes them.Newton’s Second LawForce equals mass times acceleration. This helps explain how guides handle loads.Newton’s Third LawEvery action has an equal and opposite reaction. This matters for how parts push and pull.Precision and AccuracyPrecision means doing the same thing every time. Accuracy means hitting the target spot.Guide rails help machines like CNC tools and robots move with great care. They give high-speed, repeatable motion. Sliding rails keep friction low, so errors stay small. The strong rails and bearings support heavy loads and keep movement steady. BOM uses these sliding rails in custom solutions for robots and factory machines. These systems need exact and smooth movement for their applications.
Guide Rails Functions and BenefitsLoad Support and StabilityGuide rails help hold heavy things in many jobs. They keep machines steady when they work. How much weight a guide rail can hold depends on a few things:
BOM makes guide rails for many jobs. These include robotics bearings and warehouse automation bearings. These rails help conveyor belts move things safely and smoothly. In these systems, guide rails keep items steady and stop them from tipping. Ball-bearing guide rails hold heavy loads and cut down friction. This makes them good for sliding rails in tough jobs. Precision and EfficiencyGuide rails help machines move with great care. They let parts go in a straight line. This is important for conveyor belts and conveying systems. When factories use sliding rails, there is less rubbing and more exact movement. This helps things work better and makes products higher quality. BOM’s products use special guide rails to work better. These rails help embroidery machines and robots do their jobs faster and with fewer mistakes. Conveyor belt systems use guide rails to keep things moving the right way. This cuts down waste and saves time. Safety in OperationSafety matters in every job. Guide rails help keep workers and machines safe. They hold loads steady and stop accidents. In conveyor belt systems, guide rails stop things from falling off and hurting people. Many jobs follow strict safety rules to keep things safe. StandardDescriptionEN 50129Looks at signaling logic and safety case plans.IEC 61508Gives safety steps for making safe systems.SILShows how reliable safety systems are.BOM’s guide rails help meet these safety rules. Their rails help companies keep people and machines safe. Industry ApplicationsManufacturing and AutomationFactories use guide rails in many jobs. These rails help move parts on assembly lines. They keep items in the right spot at each step. Guide rails help robotic arms pick up and place things with care. Automated guided vehicles use guide rails to move around warehouses. Many companies use modular systems with guide rails. This makes it easy to change or upgrade machines. Workers can quickly adjust to new products. In electronics and semiconductor factories, smooth and exact movement is needed. Linear guides with special coatings and sealed oil help in these hard places. BOM gives custom bearings and solutions for these uses. Their products help conveyor belts move items safely and smoothly.
Robotics and Medical EquipmentRobots need guide rails for smooth and exact moves. In factories, robots use these rails for welding and putting things together. BOM’s custom bearings help humanoid robots move with care. In medical machines, stainless steel guide rails are important. They do not rust and keep machines steady. Imaging tools like CT and MRI scanners use guide rails for clear pictures. These rails make sure parts move the same way each time. This helps doctors get good results. Robotic surgery tools and lab machines use guide rails too. They need smooth moves for careful work. BOM’s bearings for medical and robot jobs meet strict rules. They help keep patients safe and make test results better. Transportation and Other SectorsGuide rails are important in transportation. Trains use linear guides to stay on track and carry heavy loads. Automated warehouses use guide rails in their moving systems. These rails help conveyor belts move goods from place to place. Automated guided vehicles in warehouses use guide rails for smooth travel. This lowers friction and wear, so the system lasts longer. BOM’s warehouse automation bearings and AGV bearings help these systems. Their products help conveyor belts and moving systems work safely and well. Many industries trust BOM for strong guide rails in their transport and warehouse systems. SectorKey Application AreasManufacturingAssembly lines, robotic arms, AGVsMedicalImaging devices, surgical robotsTransportationTrains, warehouse conveying systemsCustomization and MaintenanceMaterial ChoicesFactories pick different materials for guide rails. The choice depends on what the job needs. Each material has its own strengths for a conveying system or conveyor belt. Some common materials are:
Choosing the right material helps guide rails last longer. It also means less fixing is needed. The table below shows how each material works in factories: MaterialCorrosion ResistanceLifespanMaintenanceWrought IronProne to rust15–30 yearsHigh – needs repaintingAluminumCorrosion-resistant20+ yearsLow – occasional cleaningStainless SteelSuperior resistance25+ yearsVery low – periodic cleaningGalvanized SteelNeeds coatings10–25 yearsModerate – repair coatingsCustom SolutionsMany companies want guide rails that fit their machines. Custom rails help a conveying system work better. Special rails make machines more exact and accurate. They also help conveyor belts move with less rubbing. These rails can hold heavy things and keep machines steady. Custom rails let machines go faster and do more work. BOM makes custom guide rails for robots and other machines. These rails help each machine do its job well. Maintenance TipsTaking care of guide rails keeps them safe and working longer. Workers should follow these tips to keep them in good shape: Maintenance PracticeDescriptionLubricationUse the right oil and check it often.CleaningWipe off dust and dirt from rails and sliders.Regular InspectionLook for worn parts and loose pieces every week or month.Other tips are to check for trash, change old parts, and spread the load evenly. Workers should not use harsh cleaners and should keep the system clean. Too many bends in a conveyor belt can wear out rails faster. BOM’s focus on quality helps companies keep guide rails working well. This makes machines safer and better. Guide rails are very important in today’s factories. They help keep things moving the right way and support many uses. As more machines do the work, factories need guide rails that are very exact. This helps things move smoothly and in a straight line. Knowing how guide rails work helps companies pick the best parts and keep workers safe. New ideas like sensors and AI will make guide rails work even better. TrendDescriptionIndustry 4.0More machines and better safety in factories.Smart TechnologySensors and data help guide rails work better.SustainabilityFactories use less energy and make less waste.FAQWhat is the main job of a guide rail?A guide rail helps parts move in a straight line. It keeps things steady and reduces friction. Many machines use guide rails to make movement smooth and safe.
Where do people use guide rails the most?Factories, robots, and warehouses use guide rails often. Medical machines and trains also need guide rails for safe and exact movement.
How do you keep a guide rail working well?Workers should clean the rail, add oil, and check for damage. Regular care helps the rail last longer and work better.
What materials do companies use for guide rails?MaterialKey FeatureSteelStrong and toughAluminumLight and sturdyStainless SteelFights rustDoes BOM make custom guide rails?Yes. BOM designs custom guide rails for robots, machines, and special jobs. They match each rail to the needs of the customer. |
